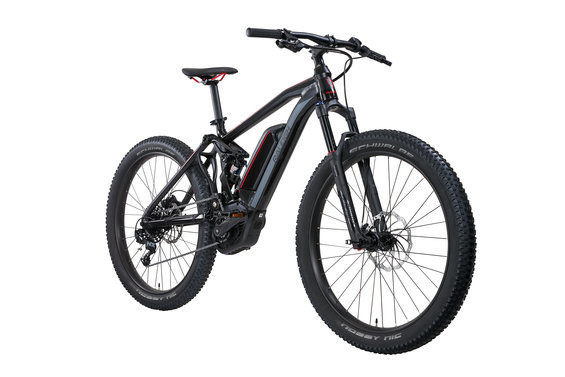

Raleigh Electric Kodiak iE eMTB

Raleigh Electric Kodiak iE eMTB
$3,499.99
$4,999.00
Color:
Grey
Please select options

Details

The full suspension Kodiak IE electric mountain bike tackles any terrain with the unbeatable combination of 27.5-inch wheels, grippy mid-fat tires and 130mm of plush RockShox suspension travel front and rear. Amp your fun with the ultimate power of the best-in-class 500W Bosch Performance CX mid-motor mounted to a superlight and ultra responsive 6061 T6 aluminum alloy full suspension frame. Rounded out with trail proven performance geometry, the Kodiak IE will electrify any ride.

Specs


Frame
Multi Formed Aluminum Alloy 6061 T6 Dual Suspension, 4 link All Mountain Design. 130mm of Rear Wheel Travel.

Rear Shock
Rock Shox RT3

Fork
Rock Shox REBA 130mm Solo Air

Headset
Integrated, Sealed Bearing

Cranks
Forged Alloy for Bosch System

Sprocket
Forged Spider, 18 Tooth w/Chainguard, Steel

Rear Derailleur
SRAM NX, Wide Range, Roller Clutch

Shifter
SRAM NX 11 Speed

Cogset (Cassette/Freewheel)
SRAM Wide Range, 11-48 Tooth, 11 Speed

Chain
KMC x11ePT, Ebike Specific

Front Hub
Formula, Sealed Bearing, Thru Axle, Boost 110

Rear Hub
Formula, Sealed Bearing, Thru Axle, Boost 148

Spokes
Stainless

Rims
27.5", 45mm ID, Disc Specific

Tires
27.5 x 2.6" Schwalbe Nobby Nic

Brakes
Magura Fifty4, 4 Piston Front 203mm Rotor, 2 Piston Rear 180mm Rotor

Brake Levers
Magura Fifty4, HC 2 Finger

Pedals
Alloy, Sealed Bearing

Handlebar
Raleigh Aluminum Alloy

Grips
Raleigh Ergo Comfort Control

Stem
Raleigh Aluminum Alloy, 3d Forged

Seat
Raleigh Custom Ergo Performance

Seatpost
Raleigh Aluminum Alloy, Forged Head

Motor

Bosch Performance CX, 250W, 20MPH, Made in EU

Battery
Bosch Powerpack 500Wh, DT Mount

Display
Bosch Purion, Compact Type

Max assisted speed
20mph

Range estimated
35mi to 65mi

Part Numbers

Option UPC MPN Store SKU
Grey / LG FITS 5'9" - 6' 791964553168 14186321 4551
Grey / MD FITS 5'6" - 5'9" 791964553151 14186320 3795
