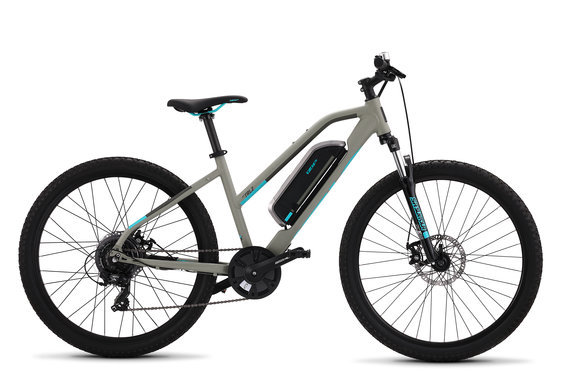

IZIP E3 TRLZ Step Thru

IZIP E3 TRLZ Step Thru
  • Color: Smoked Truffle Gray
  • Color: Smoked Truffle Gray
  • Color: Smoked Truffle Gray
Smoked Truffle Gray
Please select options


The IZIP TRLZ opens possibilities and brings the joy of riding to your doorstep. Equipped with an SR Suntour Performance 250W rear hub motor delivering 60Nm of torque, this bike will move you wherever you want to go all while providing an intuitive and efficient ride from its multiple input sensors. The upright riding position gives you great stability on the bike path as well as the confidence to explore gravel roads, thanks to its SR Suntour XCE-28 suspension fork and 27.5-inch wheels. Live life out on the open TRLZ!


SR Suntour’s gear driven system supplies ample amounts of torque (60nm) with 400W of peak power allowing the system to maximize battery efficiency through their Active Torque Sensor (ATS) system. ATS simultaneously monitors the rider’s torque, cadence and bike speed to seamlessly connect the rider and bike delivering power upon demand while increasing riding range.

ATS systems have a high motor efficiency of 87%. Other systems which only monitor torque or only cadence require the motor to always be at full power requiring a larger battery to continuously deliver enough power to the system. Larger batteries significantly increase the overall weight of the bicycle which in most cases bring their bikes to well over 60lbs. which is over 20% heavier than comparable IZIP models.


IZIP provides a range of frame designs specifically tailored to different genders and rider heights by offering both step over and step through frames in multiple sizes.

Some of the competitors offer only one size frame which only somewhat works with baseball caps. With bicycles, one size does not usually fit most.


IZIP’s customer service is unparalleled in the market with a network of service providers across the US which is also backed up by US based customer service call centers that can also provide help over the phone. Quality matters and we stand behind our product.


Drive System SR Suntour E25 Performance Rear Hub Brushless DC Motor, 250W
Display SR Suntour Multi-Function LED Display
Battery Type/Weight SR Suntour Li-Ion 410Wh Downtube Mounted
Max. Assisted Speed 20 mph (32 kph)
Range 15mi (24km) to 62mi (100km)
Frame Lightweight 7005 Alloy, Trail Geometry with Rack Mounts
Fork SR Suntour XCE-28 Suspension Fork, 80mm Travel
Headset Semi-Integrated, Sealed Mechanism
Rims/Wheels 27.5” Alloy Double Wall, Black Annodized
Hubs Front: Formula, 36 Hole, W/ QR
Rear: SR Suntour E25 Performance Rear Hub, 36 Hole, Bolt-on
Spokes Black w/Silver Nipples
Tires Vee Rubber, Off-Road Style, 27.5”x 2.25”
Crankset SR Suntour Alloy Black, 170mm, with Torque, Cadence and Speed Sensor
Chainrings 42 Tooth
Chain KMC Z7
Rear Derailleur Shimano Tourney, 7 Speed
Cassette/Rear Cogs Shimano HG-200, 12-32 Tooth, 7 Speed
Shifters Shimano Acera Rapid Fire, 7 Speed
Handlebars IZIP Aluminum Alloy, 680mm Width w/20mm Rise
Tape/Grips IZIP Kraton Rubber, Black
Stem IZIP Aluminum Alloy, w/15 Degree Rise
Brake Levers Tektro 2 Finger Lever
Brakes Tektro Mechanical Disc, 180mm Rotors
Pedals Resin Body, Black
Saddle IZIP Custom Ergo Performance
Seatpost IZIP Aluminum Alloy, Forged Head, 350mm
Accessories & Extras Alloy Bell, Adjustable Kickstand

* Subject to change without notice.



Live life and explore possibilities with the IZIP TRLZ. Over the hills and through the forest, rides are a breeze thanks to its SR Suntour 400W rear hub motor.

Part Numbers

Option UPC MPN Store SKU
Smoked Truffle Gray / Small 791964577775 16-1713003 4531
Smoked Truffle Gray / Medium 791964577782 16-1713004 4532
