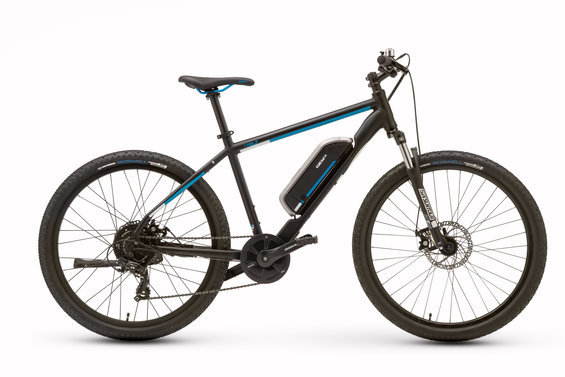

The IZIP TRLZ Step Over opens possibilities and brings the joy of riding to your doorstep. Equipped with an SR Suntour Performance 250W rear hub motor delivering 60Nm of torque, this bike will move you wherever you want to go all while providing an intuitive and efficient ride from its multiple input sensors. The upright riding position gives you great stability on the bike path as well as the confidence to explore gravel roads, thanks to its SR Suntour XCE-28 suspension fork and 27.5-inch wheels. Live life out on the open TRLZ!
SR Suntour’s gear driven system supplies ample amounts of torque (60nm) with 400W of peak power allowing the system to maximize battery efficiency through their Active Torque Sensor (ATS) system. ATS simultaneously monitors the rider’s torque, cadence and bike speed to seamlessly connect the rider and bike delivering power upon demand while increasing riding range.
ATS systems have a high motor efficiency of 87%. Other systems which only monitor torque or only cadence require the motor to always be at full power requiring a larger battery to continuously deliver enough power to the system. Larger batteries significantly increase the overall weight of the bicycle which in most cases bring their bikes to well over 60lbs. which is over 20% heavier than comparable IZIP models.
IZIP provides a range of frame designs specifically tailored to different genders and rider heights by offering both step over and step through frames in multiple sizes.
Some of the competitors offer only one size frame which only somewhat works with baseball caps. With bicycles, one size does not usually fit most.
IZIP’s customer service is unparalleled in the market with a network of service providers across the US which is also backed up by US based customer service call centers that can also provide help over the phone. Quality matters and we stand behind our product.
|Drive System||SR Suntour E25 Performance Rear Hub Brushless DC Motor, 250W|
|Display||SR Suntour Multi-Function LED Display|
|Battery Type/Weight||SR Suntour Li-Ion 410Wh Downtube Mounted|
|Max. Assisted Speed||20 mph (32 kph)|
|Range||15mi (24km) to 62mi (100km)|
|Frame||Lightweight 7005 Alloy, Trail Geometry with Rack Mounts|
|Fork||SR Suntour XCE-28 Suspension Fork, 80mm Travel|
|Headset||Semi-Integrated, Sealed Mechanism|
|Rims/Wheels||27.5” Alloy Double Wall, Black Annodized|
Front: Formula, 36 Hole, W/ QR
Rear: SR Suntour E25 Performance Rear Hub, 36 Hole, Bolt-on
|Spokes||Black w/Silver Nipples|
|Tires||Vee Rubber, Off-Road Style, 27.5”x 2.25”|
|Crankset||SR Suntour Alloy Black, 170mm, with Torque, Cadence and Speed Sensor|
|Rear Derailleur||Shimano Tourney, 7 Speed|
|Cassette/Rear Cogs||Shimano HG-200, 12-32 Tooth, 7 Speed|
|Shifters||Shimano Acera Rapid Fire, 7 Speed|
|Handlebars||IZIP Aluminum Alloy, 680mm Width w/20mm Rise|
|Tape/Grips||IZIP Kraton Rubber, Black|
|Stem||IZIP Aluminum Alloy, w/15 Degree Rise|
|Brake Levers||Tektro 2 Finger Lever|
|Brakes||Tektro Mechanical Disc, 180mm Rotors|
|Pedals||Resin Body, Black|
|Saddle||IZIP Custom Ergo Performance|
|Seatpost||IZIP Aluminum Alloy, Forged Head, 350mm|
|Accessories & Extras||Alloy Bell, Adjustable Kickstand|
* Subject to change without notice.
Trail Riding on the TRLZ
|True Black / Medium||791964577751||16-0713001||4529|
|True Black / Large||791964577768||16-0713002||4530|
